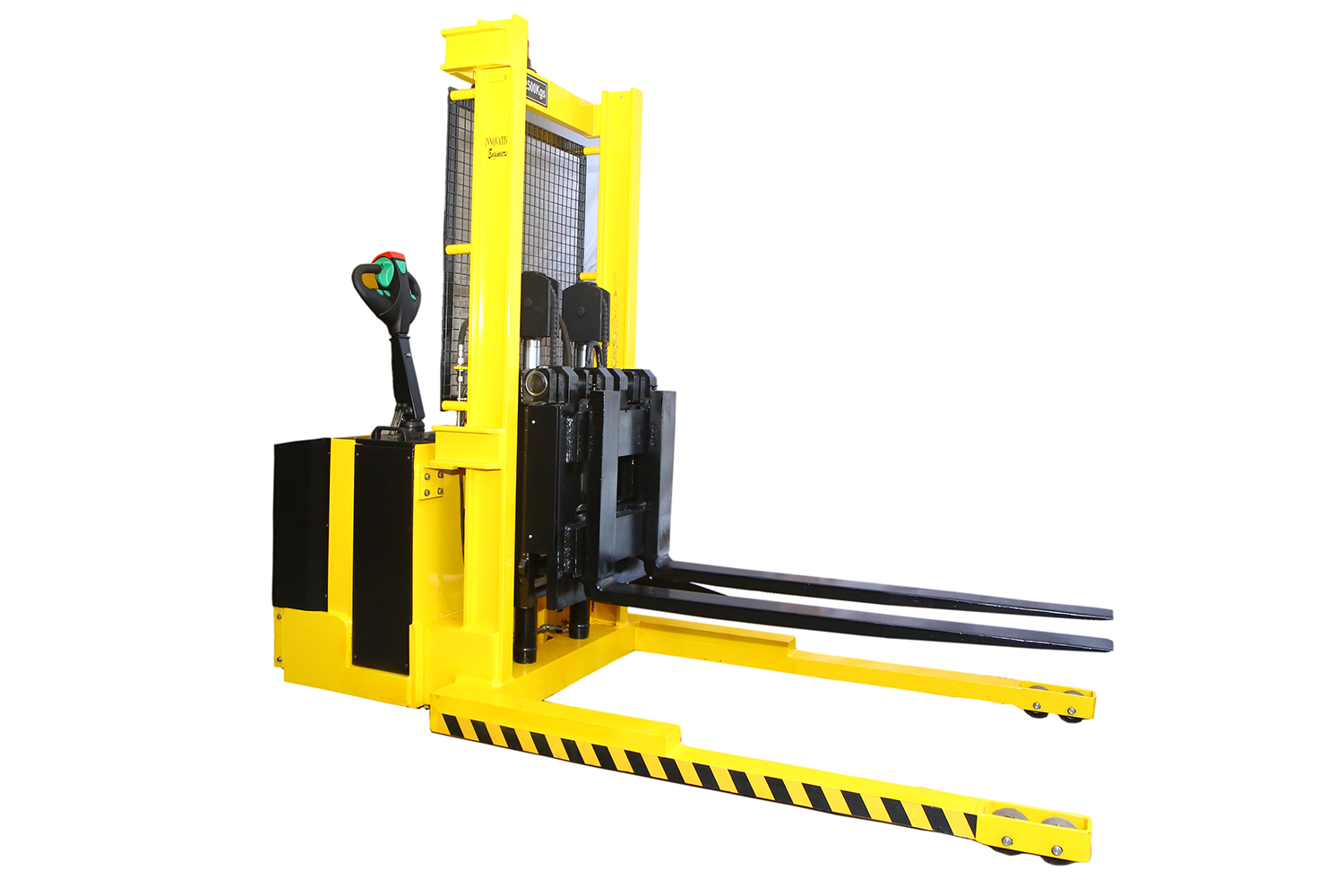

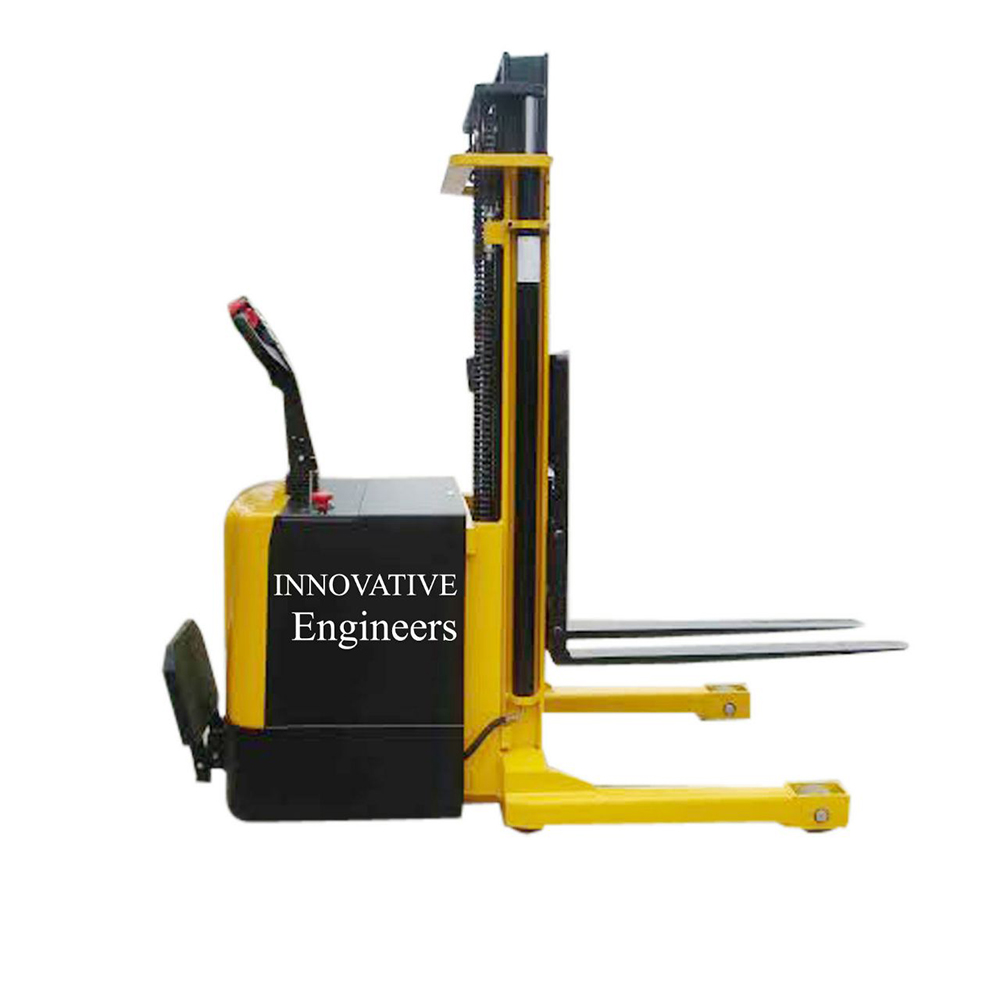

Full Electric Stacker

Full Electric Stacker

Model - ELX-10 FES
1 Power     Electric
2 Operator Type     Rider
3 Load Capacity -     Q Kg 1000
4 Capacity @ Max. Height   Kg 850
5 Wheel Base -     y mm 1600
6 Load Center -     c mm 600
7 Color Paint/Powder Coat   Yellow/Orange
Dimensions
8 Mast Collapsed height -     h1 mm 2080
9 Free Lift -     h2 mm 1950
10 Lift Height -     h3 mm 3000
11 Mast  Extended Height -     h4 mm 3500
12 Tiller Arm Height min/max,  - h14 mm 1025 / 1490
13 Lowered Fork Height -     h13 mm 90
14 Overall Length Platform Open – l1A mm 2700
15 Overall Length Platform Close – l1B mm 2300
16 Overall Width Front/rear – b2 / b1 mm 1500 / 850
17 Fork Dimension -      mm 60X180X1150
18 Carriage Width -  mm 580
19 Width Across Forks -     b5 mm 560
20 Ground Clearance -     m2 mm 30
21 Working Aisle Width -     Ast mm 2500
22 Turning Radius -     wa mm 1850
23 Track Width, front -     b11 mm 380
24 Track Width, rear -     b10 mm 620
Performance
25 Travel Speed with load /without load km/hr 5.3 / 6.0
26 Lift Speed with load /without load m/s 0.08/0.12
27 Lowering Speed with load /without load m/s 0.25/0.15
28 Gradeability with load /without load % 7.5/10
29 Service Brake     Electric
Motors
30 Traction Motor AC Induction Kw 1.2
31 Lift Motor DC Compound Kw 2.5
32 Battery Voltage V/Ah – 5 Hrs rating  V/Ah 24/240
Controller
33 Traction Controller     MOSFET/PG Drive
Wheels
34 Wheels Type     Polyurethane
35 Wheel Size Drive Wheel mm 250X75 x 1nos
36 Wheel Size Load Roller mm 82X70 x 4nos
37 Wheel Size Support Wheel mm 125X50 x 2nos
38 Wheel Size Side S Wheels (Nylon) mm 50X20 x 2nos
