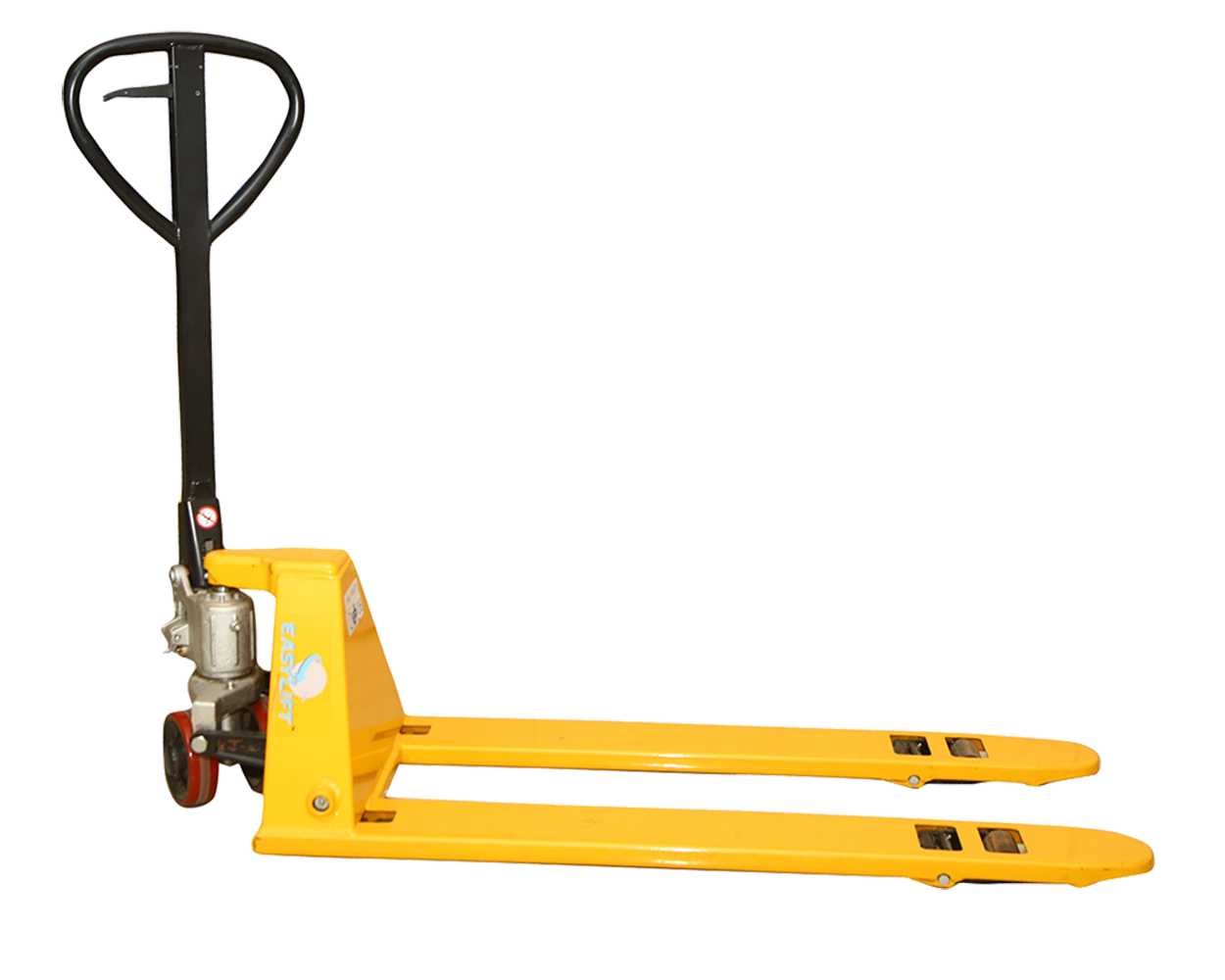

Hydraulic Hand Pallet Truck

Hydraulic Hand Pallet Truck

  • Hydraulic Hand Pallet Trucks are ideal for material movement over short distances, suitable to move around in shop floors, in ware houses and vehicles like lorry etc. The pallet truck is constructed with heavy gauge steel to provide strength and durability. The hand pallet forks are reinforced for added strength of load capacity. The steering is easy to maneuver with 210 degrees turning radius.
  • Ergonomic large rubber handle ensures a comfortable hold and easy operation. Lever comes in three positions, to lower, neutral and raising position. Speed lowering valve is provided to adjust the descent speed freely.
  • One piece cast pump with reliable oil-proof hydraulic systems and high pressure relief valve to prevent overload.
  • Effortless pallet entry/exit rollers to make it easier to push and pull pallet truck. Special size fork length shall be made according to specific customer requirement.
1 Model ELX-25 STD
2 Capacity 2500 kgs
3 Fork length 1150 mm
4 Fork Frame Width 160 mm
5 Outside fork spread 520/550/685 mm
6 Inside Fork Spread 200 mm
7 Max Fork Height 200 mm
8 Lift 115 mm
9 Lower fork Height 85 mm
10 Lower fork clearance 35 mm
11 Overall Length 1488 mm
12 Overall Height 1220 mm
13 Steer Wheel  PU  Dia X Width 180 x 50 mm
14 Load Wheel PU Dia x Width 80 x 70 mm
