Dock Leveler - 9T

Dock Leveler - 9T

  • The Dock Leveler is a special equipment for cargo loading and unloading, the operation of the material handling equipments are not influenced by the different height of trailer bed with the platform, such as the forklift, it may drive into the trailer compartment to carry on the handling operation directly, it only requires a single person to complete the process of loading and unloading cargo fast and safely. It can help reduce a lot of the labor cost, improve working efficiency by many times, obtain the better economic efficiency, it is indispensable to the modern warehouse.
  • Hydraulic Dock Levelers offer high performance, minimal maintenance and increased safety for today’s high volume loading dock area. Easy to operate hydraulic system incorporates pushbutton control for both deck and lip operation, powered by a self contained, maintenance free power pack.
SL No Make    ELX-DL 90
1 Rated Lifting Capacity 9000 kgs
2 Overall Dimensions (L*W*H) 3182*2130*500mm
3 Deck Dimensions (L*W*H) 2752*2130*500mm
4 Pit Dimensions (L*W*H) 2800*2180*500mm
5 Working Range – Up and Down 500/255 mm
6 Lip 430 mm
7 Lip Operation Hydraulic operated
8 Power Pack  1 hp with max 5mtr Parker Hose
9 Position of the power pack Outside/Away from the Dock Leveler

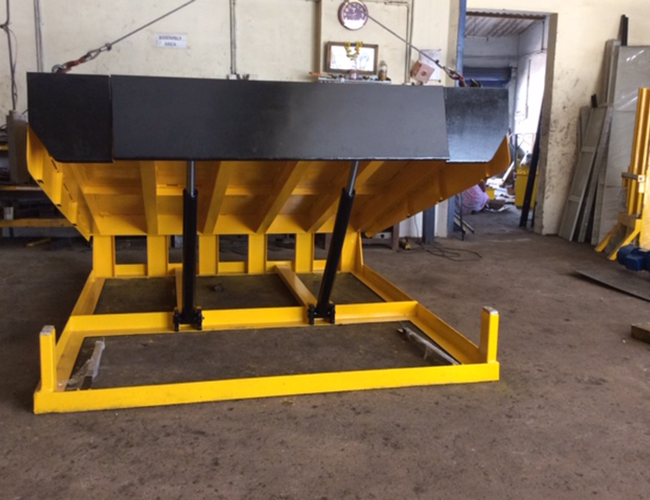

10 Hydraulic Cylinders With 1 or 2 main hydraulic cylinders with chrome hardened plunger with double sealed for lifting the platform & one cylinder for lip movement
11 Structure Dock Platform & Lip are made of high quality chequered plate
12 Dock Bumpers Rubber Dock Bumper – 2nos
13 Electricals With all necessary Electrical Connections and Safety Equipment such as Emergency Stop, Latching System, Manual Override Switch
