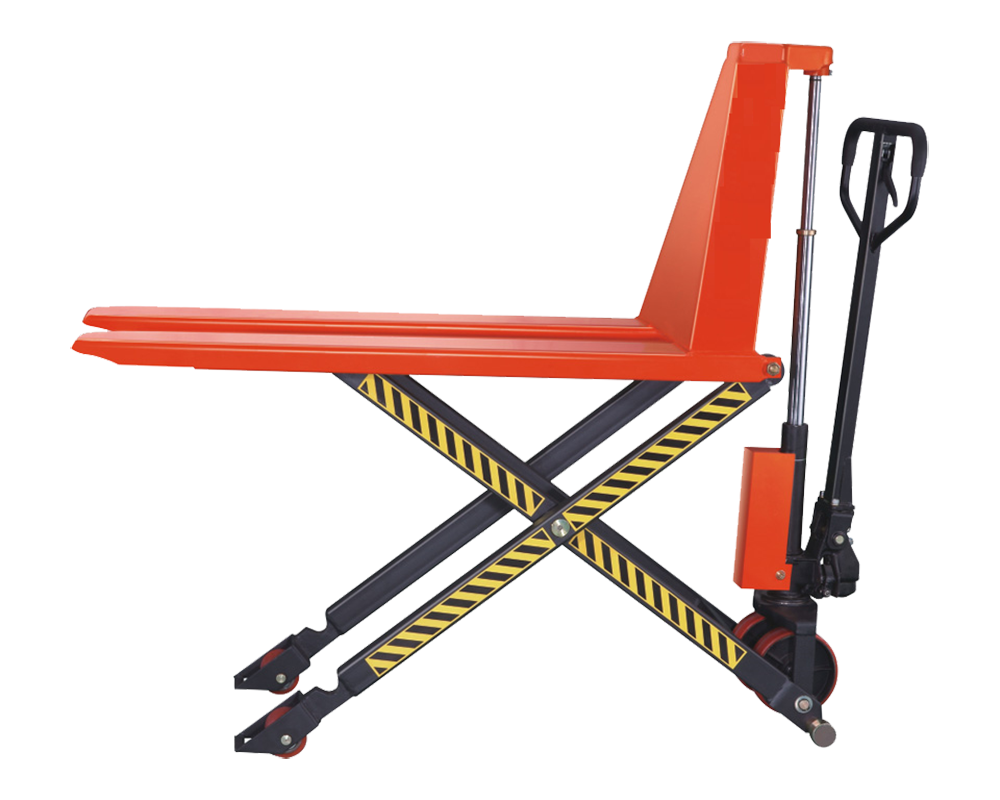

High Rise Hand Pallet Truck

High Rise Hand Pallet Truck

  • High Rise Hand Pallet Trucks are designed to load and unload onto conveyors or hydraulic presses.
  • Quick lift function doubles the lifting speed when lifting loads less than 250kgs. Automatic activation of self adjusting stabilizers when lifting loads higher than 400mm of maximum stability.
  • Extra long front legs increase the stability when handling unevenly loaded pallets. When lifting height is below 400mm, it is as easy to move as a pallet truck. Above 400mm, the truck is automatically locked by triggering the supports at both sides of the steering wheels.
1 Model ELX-10 HR
2 Capacity 1000kgs
3 Fork length 1150mm
4 Fork Width 160mm
5 Outside fork spread 550mm
6 Inside Fork Spread 200mm
7 Max Fork Height 800mm
8 Min Height 85mm
9 Lift 115mm
10 Lower fork Height 80mm
11 Lower fork clearance 35mm
12 Steer Wheel Dia X Width 180 x 50 mm
13 Load Wheel Dia x Width 80 x 70 mm
